Compression Fittings

Explore our range of fittings designed for high-pressure water conveyance, irrigation, and more. These fittings are essential for optimizing your irrigation system's efficiency.

Learn More

What is new in IRRILINE Hand Roll Irrigation Systems?

Pressure Rating
Description
Range
Specification
Materials

Select Tab

Pressure Rating
Description
Range
Specification
Materials

Pressure Rating:

10 bar at 20°C for fittings from 20mm up to 50mm

The pressure rating has to be adjusted as shown in the figure below, if the fittings are to be used at the higher temperature.

Description

Range of fittings for high-pressure conveyance of water, irrigation, gaseous fuels, compressed air, chemical solutions, and slurries.

Range

Metric series from 16mm up to 110mm, imperial series from 1/2” up to 4”

Body, Cap, Insert

Polypropylene copolymer PP -B

Split Ring

Polyacetal

O-Ring

Elastomeric rubber NBR70

Reinforcing

Ring Aluminium or Stainless Steel

Materials

These fittings are approved for use in potable water supply systems.

The fittings are suitable for exposure to sunlight (UV) and give excellent chemical resistance.

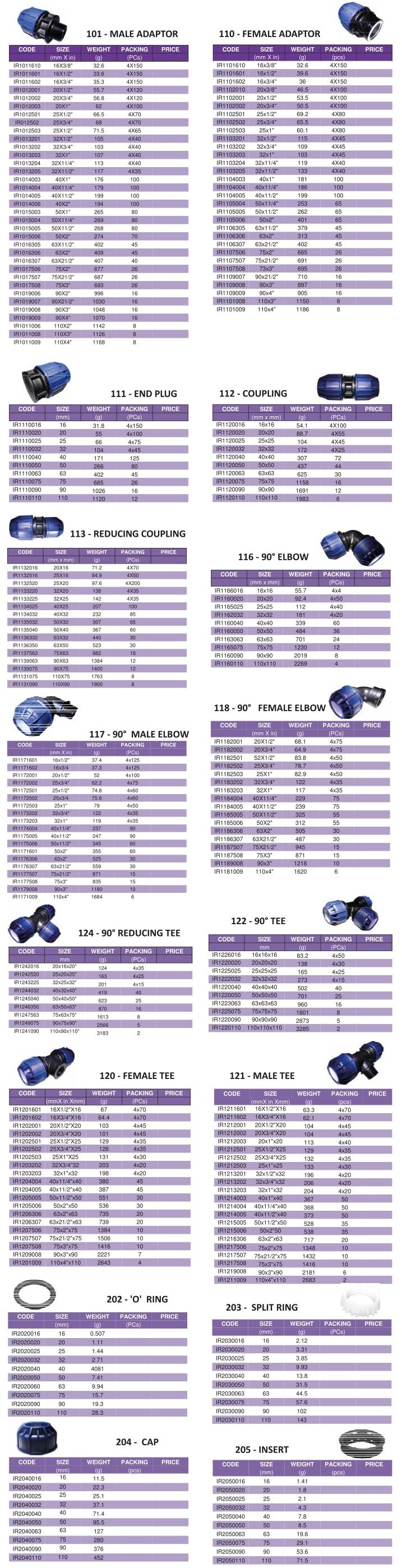

Please refer to technical catalogue for specific data sheets

Parts

Parts Number

Description

I-01-20-553/1

Sprinkler 3/4″ FC
Sprinkler 3/4″ PC

I-01-20-553/1

Sprinkler 3/4″ FC
Sprinkler 3/4″ PC

I-01-20-553/1

Sprinkler 3/4″ FC
Sprinkler 3/4″ PC
